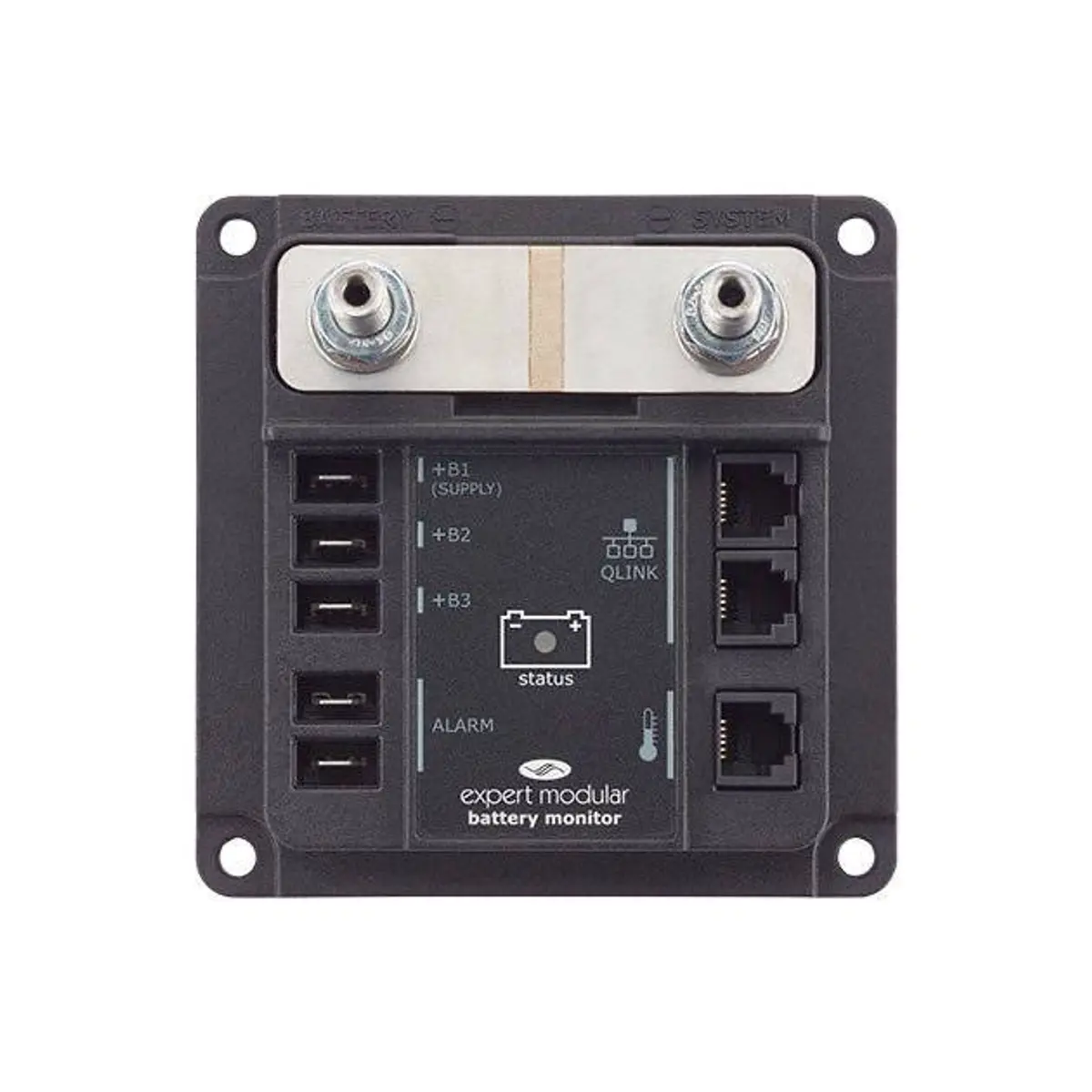

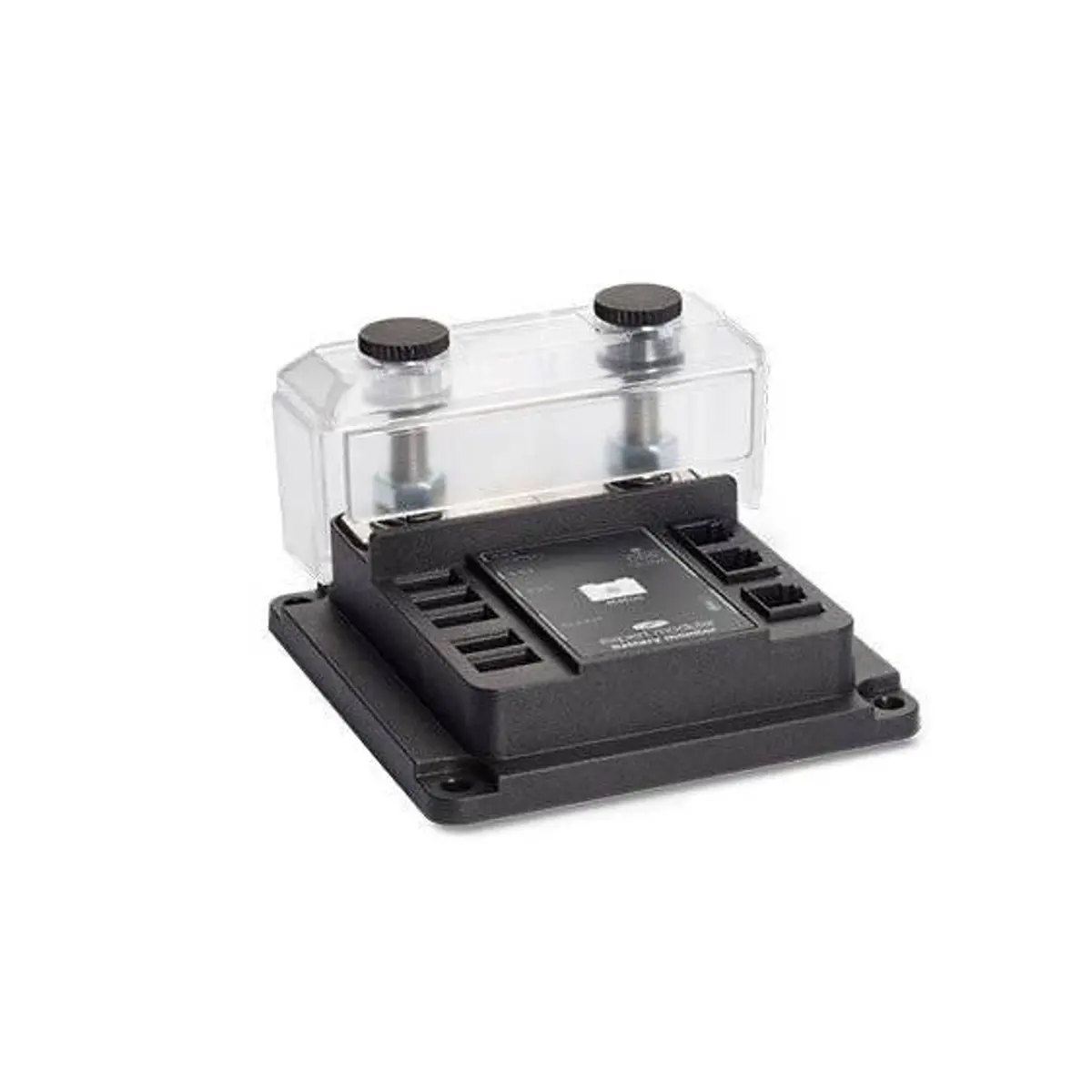

Shunt till Expert Modular instrument.
• Supply voltage range 7..70Vdc
• Supply current (@ 12V/ 24V/48V) 10mA / 6mA / 5mA
• Input voltage range main battery (+B1) 1) 7..70Vdc
• Specifikationer för komplett instrument 5056030
• Input voltage range second and third battery (+B2, +B3) 1..70Vdc
• Input current range -600..+600A
• Battery capacity range 10..10000Ah
• Operating temperature range -20..+50°C
• Storage temperature range -30..+70°C
• Voltage measurement accuracy ± 0.3%
• Current measurement accuracy ± 0.4%
• Dimensions: Se ritning
• Weights Shunt: 290grams / CDU 70grams
• Protection class: IP20 (CDU frontpanel only IP65)
• Standards: CE certified (EMC Directive 2014/30/EU) including EN50498 Automotive EMC
